序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||

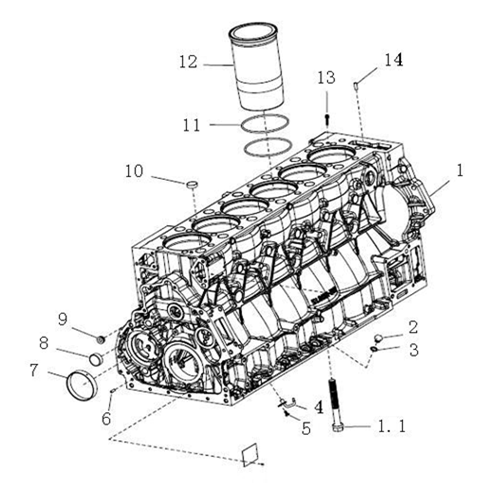

| 1 | 非后取力曲轴箱 | non power taking off crankcase | 201-01102-6455 | 1 | 1 | ||||
| 1.1 | 主轴承螺栓 | main bearing bolt | 200V90020-0391 | 14 | 14 | M18X2X160,5-12.9-MAN183-PHR | |||
| 2 | 螺塞 | plug | MQ6-08042-0603 | 1 | 1 | M14X1,5-ST-GB/T 5267.1-电镀锌A3C | |||
| 3 | 复合密封垫圈 | composite sealing gasket | MQ6-56631-0106 | 1 | 1 | BS-14,7 X22,0 -ST/FPM1-80 | |||
| 4 | 机油喷嘴 | oil nozzle | 200V01601-0015 | 6 | 6 | ||||
| 5 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8202 | 6 | 6 | Q186-M6X12-10.9-MAN183-B1 | |||
| 6 | 圆柱销 | cylindrical pin | MQ6-22140-1011 | 4 | 4 | GB/T 119.2-8M6X18 | |||
| 7 | 机油泵衬套 | oil pump bushing | 201V93020-0405 | 1 | 1 | ||||
| 8 | 碗形塞 | bowl plug | 200V91606-0037 | 6 | 6 | 直径40,30 | |||
| 9 | 锁紧螺钉 | locking screw | 200V90310-0118 | 3 | 3 | M22X1,5X11 | |||
| 10 | 碗形塞 | bowl plug | 200V91606-0036 | 12 | 12 | 直径32,30 | |||
| 11 | 气缸套密封圈 | cylinder liner seal ring | 200V96501-0534 | 12 | 12 | 139,4X3,95 | |||
| 12 | 气缸套 | cylinder liner | 200V01201-0417 | 6 | 6 | ||||
| 13 | 密封塞 | closing plug | MQ6-21649-0008 | 1 | 1 | 10X6,5 | |||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 14 | 圆柱销 | cylindrical pin | MQ6-22022-3563 | 2 | 2 | GB/T 119.1 16H8X24-材料45-GB/T 3078-GB/T 11376-ZNPHR3F | |||
| 15 | 粘贴材料 | paste materials | MQ4-90300-9009 | 1 | 1 | N703-A2 FL250GR OMNIFIT 200M GRUEN | |||
| 16 | 粘贴材料 | paste materials | MQ4-90300-9009 | 1 | 1 | N703-A2 FL250GR OMNIFIT 200M GRUEN | |||
| 17 | 曲轴箱（用于售后） | crankcase (for customer service) | 201-01100-6212 | 1 | 1 | ||||
