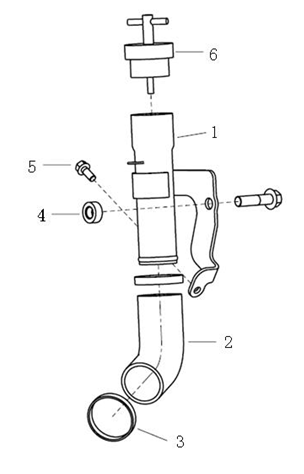

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 1 | 机油加油管总成 | oil filling pipe assembly | 812W01810-6019 | 1 | 1 | ||||
| 2 | 胶管 | rubber hose | 812W01810-0036 | 1 | 1 | ||||
| 3 | 软管卡箍 | hose clamp | 190003989306 | 2 | 2 | ||||
| 4 | 垫块 13 | block 13 | 812W90710-0326 | 1 | 1 | ||||
| 5 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03215-8304 | 1 | 1 | Q186-M 8X20-8.8-MAN183-B1 | |||
| 6 | 加油管盖总成 | fuel pipe cover assembly | VG2600010489 | 1 | 1 | ||||
